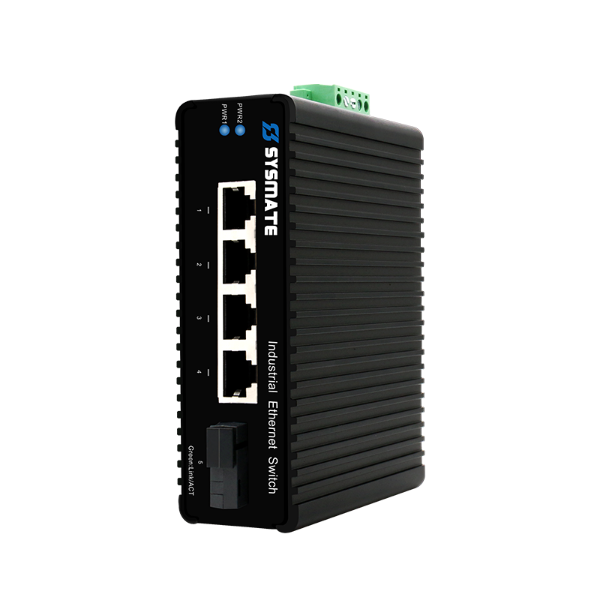

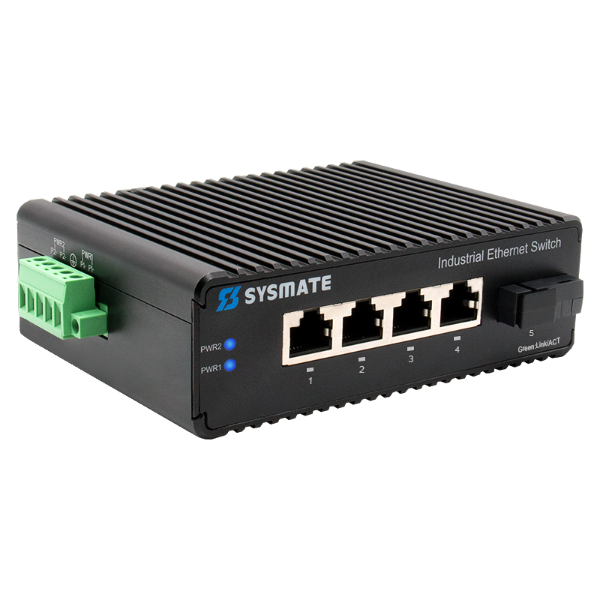

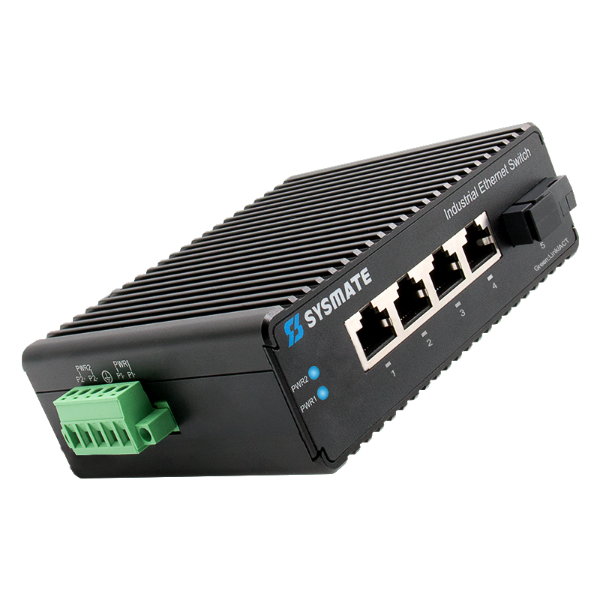

TPK-I11FSC4F 100 MB industrial level switch

● Support 1*100BASE-FX optical port ;

● Support 4*10/100BASE-T Ethernet ports ;

● DC10-58V wide voltage dual power supply redundant backup ;with anti-reverse connection protection function ;

● Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV,and anti-static up to 8-15KV ;

● Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C ;

● Corrugated high-strength aluminum alloy shell, DIN rail type installation ;

● Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications ;

● Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.


DETAILS PARAMETERS APPLICATION HOT PRODUCTS

Product Description:
The TPK-I11FSC4F 100M switch is a new-generation of green and energy-saving unmanaged Ethernet access industrial-grade switch launched by our company. The product adopts fanless heat dissipation, redundant circuit design, IP40 protection level and corrugated high-strength aluminum alloy shell, so the work performance is more safe and reliable. The product complies with CE, FCC, CCC,  ROHS standards. The operating temperature range of -40°C to 85°C can adapt to harsh working environment. DIN rail installation meets the needs of industrial sites and can be widely used in smart cities, smart transportation, smart pipe corridors, smart industry and other industrial scenarios with Ethernet access.


Product Features:
• Support 1 100BASE-FX optical port
• Support 4 10/100BASE-T Ethernet ports
• DC10-58V wide voltage dual power supply redundant backup, with anti-reverse connection protection function
• Passed the EMC industry level 4 standard
• It is equipped with Marvell industrial-grade chip in the United States, which is more stable in use
• Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C
• Corrugated high-strength aluminum alloy shell, DIN rail type installation
• Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications
• Support PoE expansion, IEEE802.3af; maximum power 15.4W, IEEE802.3at; maximum power 30W






Specification         Model: TPK-I11FSC4F
Protocol Standard  IEEE802.3,IEEE802.3u,IEEE802.3x
Switching Performance  Forwarding Rate: 0.744Mpps
Transmission Method: Store and Forward
Buffer: 512K
Switched Bandwidth: 1.0Gbps
Latency: <5μs
MAC Address Table 1K
Interface Electrical port: 10/100Base-TX,RJ45 port auto flow control
Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect
Fibre optical port: 100Base-FX,(SC/FC/ST optional )
Transmission Distance  Twisted-pair: 100M
Fiber Optics: 20km/40km/60km/80km/100km/120km( single-mode optional)
Indicator Lamp POWER indicator: PWR1  PWR2(Blue)
Interface indicator: Light indicator-Link, Flashing indicator-Act(Green)
Power Supply Input voltage: DC10-58V double power supply back-up
Access terminal: 5-core 5.08mm pitch plug-in terminal
Power: <3W
Overload Protection: support
Reverse Connection Protection: support
Redundancy Protection: support
Mechanical Structure  Shell: Aluminum alloy Shell
Cooling Method: no fan, natural cooling
IP Grade:IP40
Dimension:125mm * 95mm * 40mm
Weight: 510g around

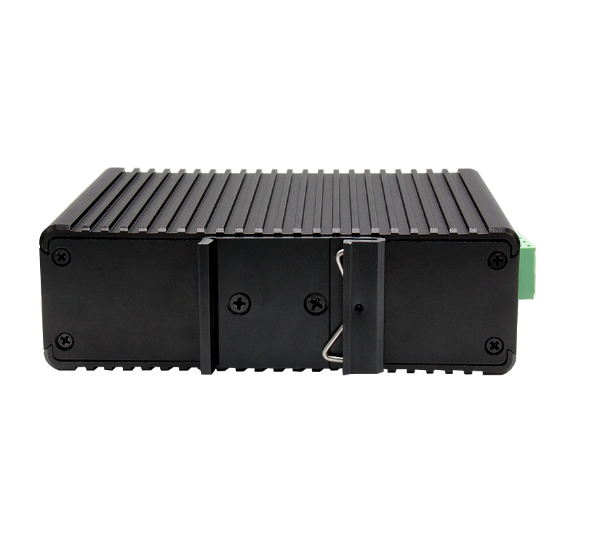

Installation Method: DIN rail / wall mounted
Environment  Operating Temperature: -40~85℃
Storage Temperature: -40~85℃
Relative Humidity: 5%~95%(non-condensing)
Accessories Power supply terminal, certification, instruction manual, power adapter(optional)
Warranty MTBF: 450000h
Warranty: 5 years
Certification CCC、FCC、CE、RoHS
Industry Standard  EMI:FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS             IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air)
               IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
               IEC61000-4-4(EFT) Power Port: ±4kV;Data Port:±2kV
               IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV
               IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz)
Mechanical  IEC60068-2-6 (vibration)
               IEC60068-2-27 (impact)
               IEC60068-2-32 (drop)
.
