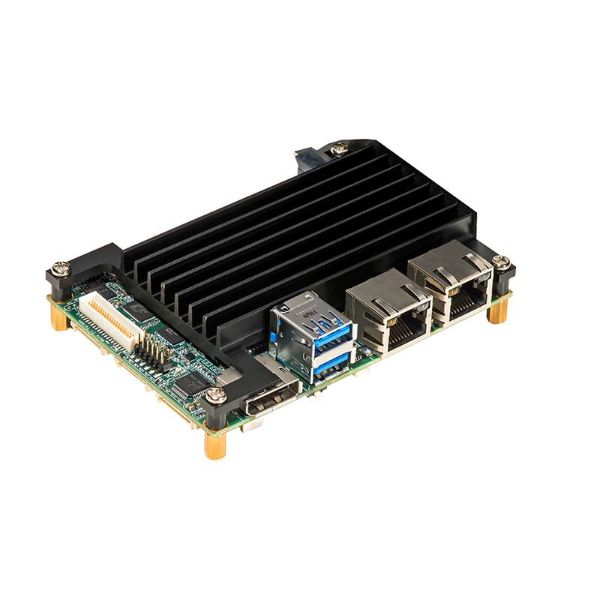

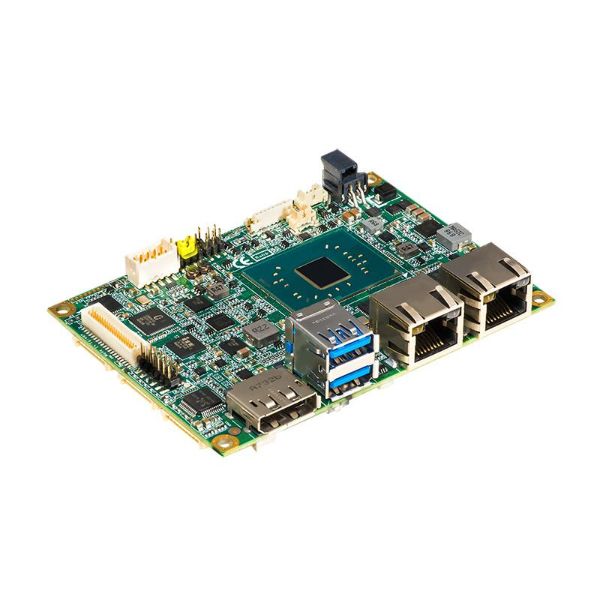

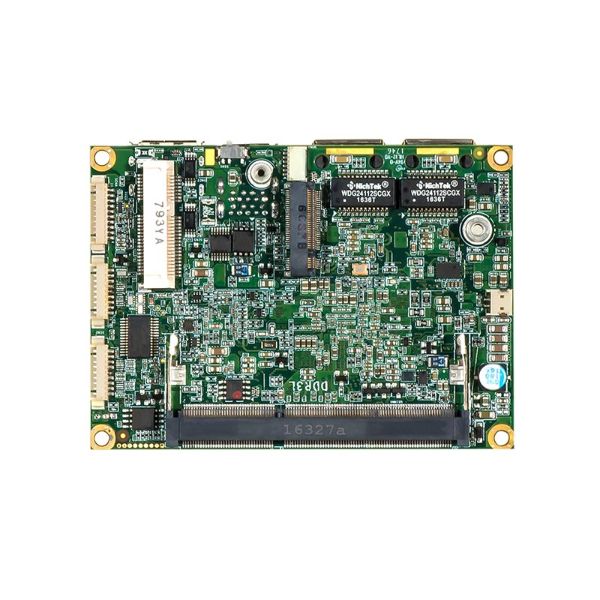

TOP-AI4200-K22

● Intel® Pentium® processor N4200/Celeron® processor N3350 and J3455
● 1 DDR3L SO-DIMM for up to 8GB of memory
● 2 GbE LAN
● 1 PCI Express Mini Card slot with mSATA supported
● M.2 Key B
DETAILS PARAMETERS APPLICATION HOT PRODUCTS
<span style="font-family:Arial;font-size:16px;">
CPU Intel® Pentium® processor N4200 & Celeron® processor N3350 and J3455 onboard
System Memory 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
Chipset SoC integrated
BIOS AMI
SSD 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 optional) in 22x42 or 30x42
Watchdog Timer 65536 levels, 1 to 65535 sec.
Expansion Interface 1 x Half-size PCI Express Mini Card slot with mSATA supported
Battery Lithium Lithium 3V/220 mAh
Power Input 2 x 2-pin connector
+12V DC-in only
AT Auto Power On function supported
Power Requirements Intel® Pentium® N4200 @ 1.1 GHz 8GB DDR3L Max RMS: +12V @1.3A
Intel® Celeron® N3350 @ 1.1 GHz 8GB DDR3L Max RMS: +12V @1.1A
Intel® Celeron® J3455 @1.5 GHz 8GB DDR3L Max RMS: +12V @1.8A
Dimensions 100 x 72 mm
Board Thickness 1.6 mm
Operating Temperature -20°C to +60°C (-4°F to +140°F)
Humidity 10% to 95% relative humidity, non-condensing
SATA N/A
Hardware Monitoring Detect CPU/system temperature and voltage
Ethernet 2 x 10/100/1000 Mbps Ethernet with Intel® i211-AT; support Wake-on-LAN,PXE Boot ROM
Audio HD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC662
USB 2 x USB 2.0
2 x USB 3.0
Serial 1 x RS-232/422/485
1 x RS-232
TPM N/A
SMBus Yes; compatible with I2C
Digital I/O 4-channel in/out programmable
Display Chipset Intel® integrated Gfx graphic engine
Display Memory Size Share system memory
Display Interface 1 x DisplayPort
1 x LVDS; 18/24-bit single/dual channel
.
