Industrial motherboard
  • TOP-AAQ370-K62
  • TOP-AAQ370-K62

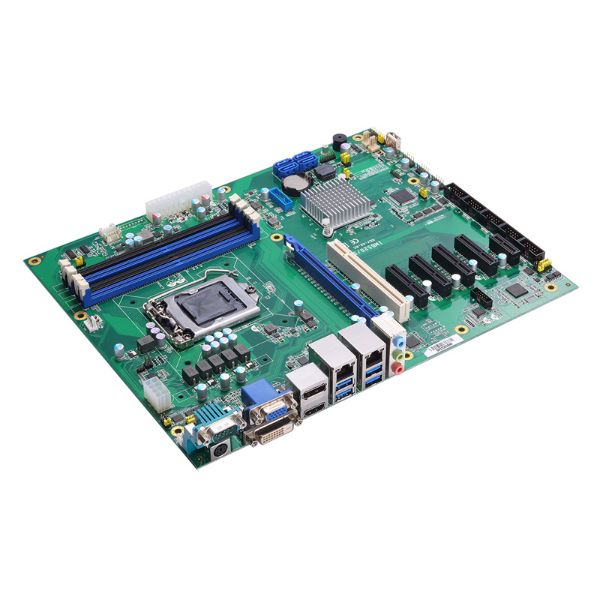

TOP-AAQ370-K62

● LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
● Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
● VGA, DisplayPort++, DVI-D and HDMI with triple-view supported
● 4 SATA-600 with RAID 0/1/5/10
● Two USB 3.1 Gen2 and four USB 3.1 Gen1
● TPM 2.0 supported (optional)
DETAILS PARAMETERS APPLICATION HOT PRODUCTS
<span style="font-family:Arial;font-size:16px;">
CPU LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3,
Pentium® & Celeron® processor (up to 95W)
System Memory 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
Chipset Intel® Q370
BIOS AMI BIOS
Watchdog Timer 255 levels, 1 to 255 sec.
Expansion Interface 1 x PCIe x16 slot 4 x PCIe x4 slot 1 x PCIe x1 slot 1 x PCI
Battery Lithium 3 V/ 220 mAH
Dimensions 305 x 244 mm
Board Thickness 1.6 mm
Operating Temperature 0°C to +60°C (+32°F to +140°F)
Humidity 10% to 95% relative humidity, non-condensing
SATA 4 x SATA-600 with RAID 0/1/5/10
Hardware Monitoring Detect CPU/system temperature, voltage and supports Smart fan control
Ethernet 1x 10/100/1000 Mbps Ethernet with Intel® i219-LM; supports Wake-on-LAN, PXE Boot ROM, iAMT
1 x 10/100/1000 Mbps Ethernet with Intel® i211-AT;
supports Wake-on-LAN, PXE Boot ROM
Audio HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC662
USB 2 x USB 3.1 Gen2 (rear I/O)
4 x USB 3.1 Gen1 (rear I/O, internal box header)
7 x USB 2.0 (pin header, 180D type A)
Serial 4 x RS-232 (Internal box header)
2 x RS-232/422/485 (COM 1: rear, COM 2: internal box header)
PS/2 Combo Port 1 x PS/2 keyboard and mouse
TPM TPM 2.0 (optional)
SMBus Yes
Digital I/O 8-channel programmable
Graphic Intel® HD Graphic
Memory Size Share system memory
Display Interface 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPort++
.
