3.5'' EC3
  • TOP-AE3350-K22
  • TOP-AE3350-K22
  • TOP-AE3350-K22

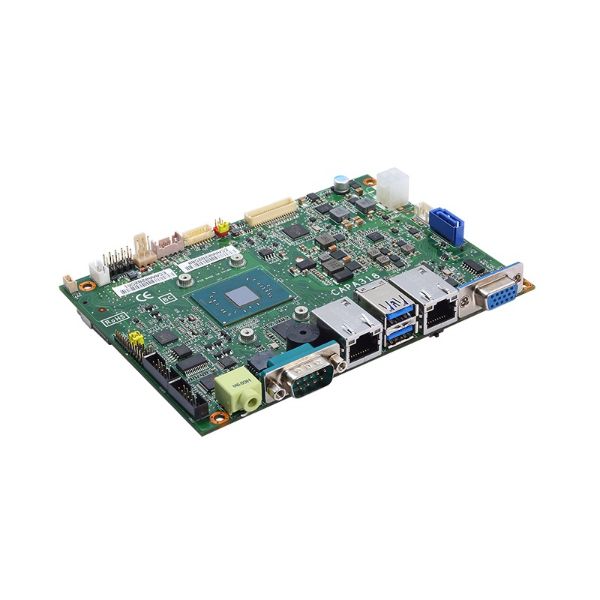

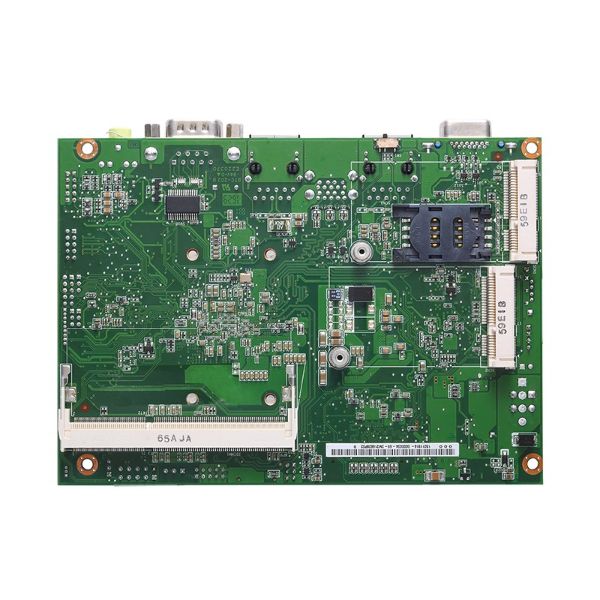

TOP-AE3350-K22

● Intel® Pentium® processor N4200/Celeron® processor N3350
● 1 DDR3L SO-DIMM, up to 8GB
● 2 USB 2.0 and 2 USB 3.0
● PCI Express Mini Card slot with mSATA supported
DETAILS PARAMETERS APPLICATION HOT PRODUCTS
<span style="font-family:Arial;font-size:16px;">
CPU Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
System Memory 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
Chipset SoC Integrated
BIOS AMI
SSD N/A
Watchdog Timer 65536 levels, 1 ~ 65535 sec.
Expansion Interface 1 x full-size PCI Express Mini Card slot with mSATA supported 1 x full-size PCI Express Mini Card slot
1 x SIM slot
Battery Lithium Lithium 3 V/220 mAH
Power Input 2 x 2-pin connector
+12V DC-in only
AT Auto Power On function supported
Power Requirements Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L Max. RMS. +12V @ 1.5A
Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L
Max. RMS. +12V @ 1.3A
Size 146 x 104 mm
Board Thickness 1.6 mm
Temperature -20°C ~ +70°C (-4°F ~ +158°F), operation
Relative Humidity 10% ~ 95% relative humidity, non-condensing
MIO 2 x RS-232
SATA 1 x SATA-600
Hardware Monitoring Detect CPU/system temperature, voltage and fan speed
Ethernet 2 ports 10/100/1000 Mbps support Wake-on-LAN, PXE Boot ROM with Intel® i211AT
Audio HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC662
USB 2 x USB 2.0
2 x USB 3.0
SMBus/I2C Yes for advanced monitoring/control
Digital I/O 8 channels in/out programmable
Chipset Intel® integrated Gfx graphic engine
Memory Size Share System memory
Display Interface 1 x VGA
1 x LVDS; 18/24-bit single/dual channel
.
