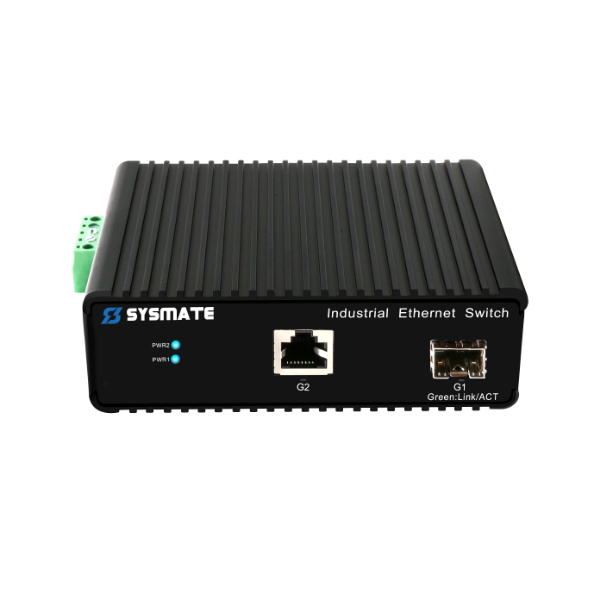

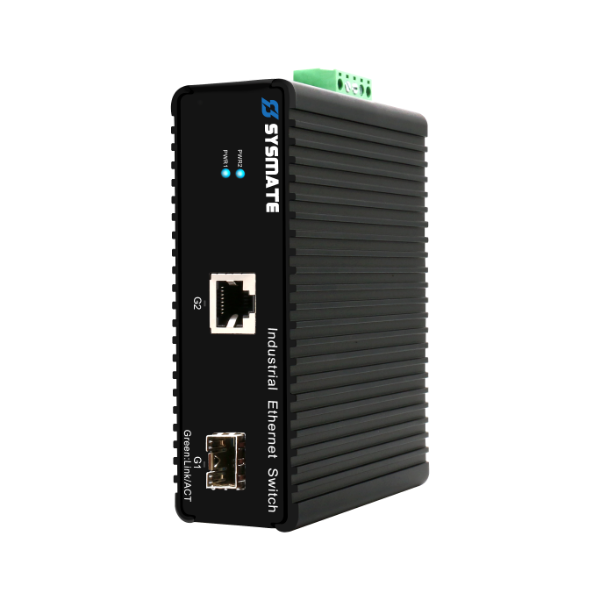

TPK-I21GS1G gigabit optical fiber transceiver

● Support 1*1000BASE-X optical port SFP ;

● Support 1*10/100/1000BASE-T Ethernet ports ;

● DC10-58V wide voltage dual power supply redundant backup ;with anti-reverse connection protection function ;

● Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV,and anti-static up to 8-15KV ;

● Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C ;

● Corrugated high-strength aluminum alloy shell, DIN rail type installation ;

● Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications ;

● Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.


DETAILS PARAMETERS APPLICATION HOT PRODUCTS

Product Description

The TPK-I21GS1G switch is a new-generation green energy-saving unmanaged Ethernet access industrial-grade switch launched by our company. The product adopts fanless heat dissipation, redundant circuit design, IP40 protection level, and corrugated high-strength aluminum alloy shell. The work performance is more safe and reliable. Products comply with CE, FCC, CCC,  ROHS standards. The operating temperature range of -40*C to 85°C can adapt to the harsh working environment. DIN rail installation meets the needs of industrial sites, and can be widely used in smart cities, smart transportation, smart pipe corridors, smart industry and other industrial scenarios with Ethernet access.


Product Features

● Support 1*1000BASE-X optical port SFP ;

● Support 1*10/100/1000BASE-T Ethernet ports ;

● DC10-58V wide voltage dual power supply redundant backup ;with anti-reverse connection protection function ;

● Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV,and anti-static up to 8-15KV ;

● Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C ;

● Corrugated high-strength aluminum alloy shell, DIN rail type installation ;

● Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications ;

● Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.



Specification         Model: TPK-I21GS1G
Protocol Standard  IEEE802.3,IEEE802.3u,IEEE802.3z
Switching Performance  Forwarding Rate: 2.98Mpps
Transmission Method: Store and Forward
Buffer: 1M
Switched Bandwidth: 4Gbps
Latency: <5μs
MAC Address Table 8K
Interface Electrical port: 10/100/1000Base-TX,RJ45 port auto flow control
Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect
Fibre optical port: 1000Base-FX, SFP port
Transmission Distance  Twisted-pair: 100M
Fiber Optics: 20km/40km/60km/80km/100km/120km( single-mode optional)
PoE Function IEEE802.3af: max15.4W, IEEE802.3at:max 30w
Indicator Lamp POWER indicator: PWR1  PWR2(Blue)
Interface indicator: Light indicator-Link, Flashing indicator-Act(Green)
Power Supply Input voltage: DC10-58V double power supply back-up

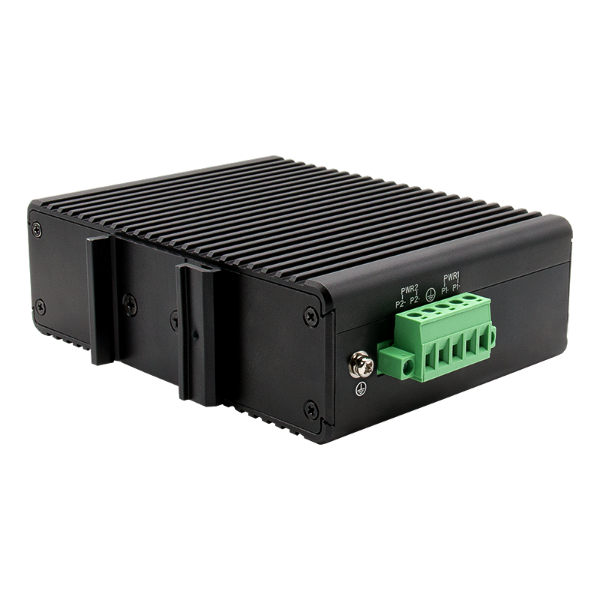

Access terminal: 5-core 5.08mm pitch plug-in terminal
Power: <3.2W
Overload Protection: support
Reverse Connection Protection: support
Redundancy Protection: support
Mechanical Structure  Shell: Aluminum alloy Shell
Cooling Method: no fan, natural cooling
IP Grade:IP40
Dimension:125mm * 95mm * 40mm
Weight: 450g around

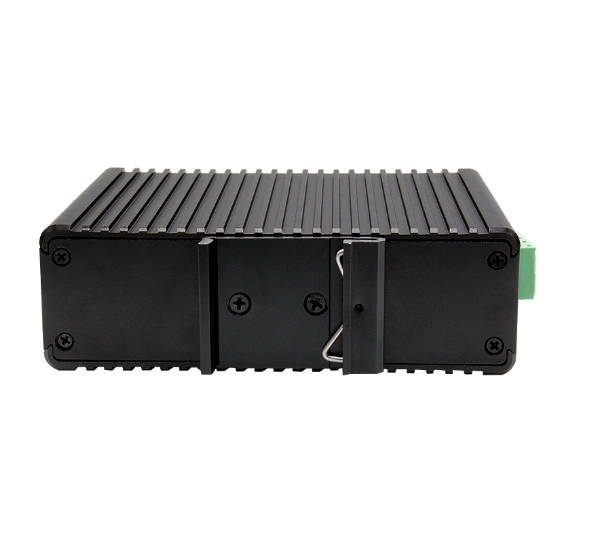

Installation Method: DIN rail / wall mounted
Environment  Operating Temperature: -40~85℃
Storage Temperature: -40~85℃
Relative Humidity: 5%~95%(non-condensing)
Accessories Power supply terminal, certification, instruction manual, power adapter(optional),
SFP optical module(optional)
Warranty MTBF: 450000h
Warranty: 3 years
Certification CCC、FCC、CE、RoHS
Industry Standard  EMI:FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS             IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air)
               IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
               IEC61000-4-4(EFT) Power Port: ±4kV;Data Port:±2kV
               IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV
               IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz)
Mechanical  IEC60068-2-6 (vibration)
               IEC60068-2-27 (impact)
               IEC60068-2-32 (drop)

Ordering Information
Model Product Description Unit
TPK-I21GS1G 1*Gigabit SFP optical port, 1*10/100/1000Base-TX adaptive electrical port Pieces

.
