| CPU | LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (up to 95W) |
| System Memory | 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB |
| Chipset | Intel® Q370 |
| BIOS | AMI BIOS |
| Watchdog Timer | 255 levels, 1 to 255 sec. |
| Expansion Interface | 1 x PCIe x16 slot 2 x PCIe x4 slot 4 x PCI slot |
| 1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA |
| Battery | Lithium 3 V/ 220 mAH |

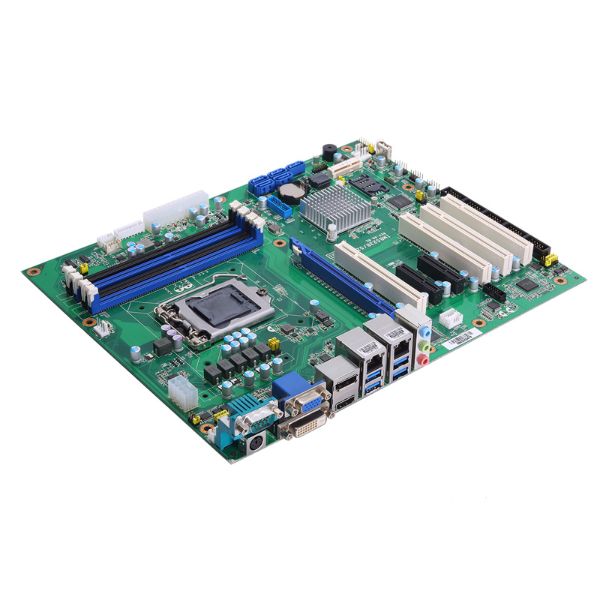

| Dimensions | 305 x 244 mm ATX motherboard |
| Board Thickness | 1.6 mm |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Humidity | 10% to 95% relative humidity, non-condensing |
| SATA | 5 x SATA-600 with RAID 0/1/5/10 |
| Hardware Monitoring | Detect CPU/system temperature, voltage and supports Smart fan control |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet with Intel® i219-LM; supports Wake-on-LAN, PXE Boot ROM, iAMT |
| 1 x 10/100/1000 Mbps Ethernet with Intel® i211-AT; |
| supports Wake-on-LAN, PXE Boot ROM |
| Audio | HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC662 |
| USB | 2 x USB 3.1 Gen2 (rear IO) |
| 4 x USB 3.1 Gen1 (rear IO, internal box header) |
| 7 x USB 2.0 (pin header, 180D type A) |
| Serial | 4 x RS-232 (Internal box header) |
| 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header) |
| PS/2 Combo Port | 1 x PS/2 keyboard and mouse |
| TPM | TPM 2.0 (optional) |
| SMBus | Yes |
| Digital I/O | 8-channel programmable |
| Graphic | Intel® HD Graphic |
| Memory Size | Share system memory |
| Display Interface | 1 x VGA |
| 1 x DVI-D |
| 1 x HDMI |
| 1 x DisplayPort++ |
