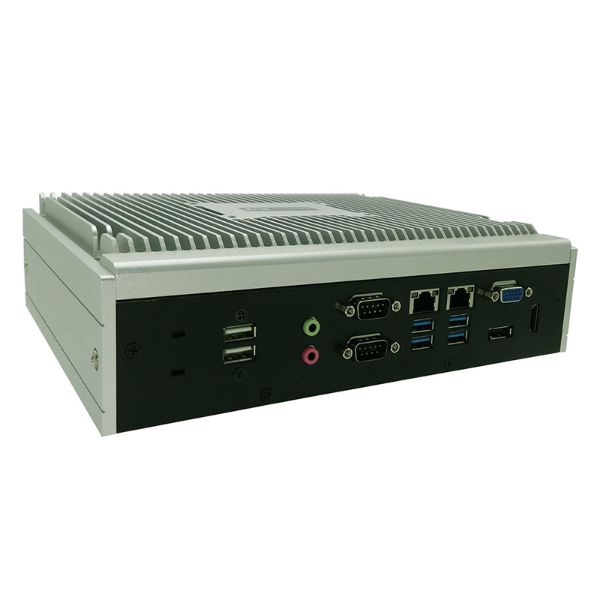

TOP-AAH110-62

● LGA1151 socket 6th gen Intel® Core™ i7/i5/i3/ Pentium®/Celeron® processor
● 2 DDR4-2133 MHZ Max. up to 32GB
● 1 x MiniPCIe and SIM card slot
● 1 SATA600 2.5" Device & 1 mSATA
● 4 USB3.0 & 2 USB 2.0
● 1x RS-232/422/485 & 5 x RS-232
产品描述 技术参数 应用方案 相关产品
● LGA1151 socket 6th gen Intel® Core™ i7/i5/i3/ Pentium®/Celeron® processor
● 2 DDR4-2133 MHZ Max. up to 32GB
● 1 x MiniPCIe and SIM card slot
● 1 SATA600 2.5" Device & 1 mSATA
● 4 USB3.0 & 2 USB 2.0
● 1x RS-232/422/485 & 5 x RS-232
Standard Color Silver-Black
Construction Aluminum and heavy-duty steel
CPU LGA1151 Socket for 6th Gen Intel® Core™ i7/i5/i3/  Pentium®/Celeron® TDP under 35W
System Memory 2 x 288-pin DDR4-2133 Long DIMM max.up to 32GB
Chipset Intel® H110
BIOS AMI IEFI BIOS
System I/O Outlet 1 x RS-232/422/485 (COM1)
5 x RS-232 (COM2-6)
1 x VGA
1 x HDMI
1 x DisplayPort
3 x Audio (Mic/Line-in/Line-out)
1 x PS/2 KB & Mouse
2 x 10/100/1000Mbps Ethernet
4 x USB 3.0
2 x USB 2.0
1 x VDC power input connector
1 x ATX power switch
1 x 8 bits DIO
Watchdog Timer 1 ~ 255 levels, 1 ~ 255 sec.
Storage 1 x 2.5” SATA HDD drive bay
1 x Msata
System Indicator 1 x green LED for system power-on
1 x orange LED for HDD active
Power Supply input 9~36VDC
Operating Temperature -5°C ~ +45°C (HDD) ,-10°C ~ +60°C (w/ W.T RAM SSD)
Humidity 10% ~ 90%
Dimensions 249 mm x 200mm x 64 mm (W x D x H)
.
