● 21.5" 全高清TFTLCD
● 长宽比: 16:9; 亮度 : 250 nits
● 厚度小于48.5mm的超薄边框形状
● 支持投射电容式触摸，10-point触摸
● 可替换的Intel® SDM CPU卡设计
● 金属框架结构，适用于各种应用
● 支持 add-on 模块和mounting kits (可选)

前边框	IP54, 金属前边框
LCD液晶显示屏	显示类型	21.5" FHD TFTLCD
	亮度 (cd/m2)	250 nits
	分辨率	1920 (H) x 1080 (V)
	长宽比	16:09
主系统	Intel® SDM Small (SDM-S, 60 x 100 mm) Intel® SDM Large (SDM-L, 175 x 100 mm)
I/O 接口	SDM500L	1 x 电源开关带 LED; 1 x GbE LAN
		2 x USB 3.0 Type A ;1 x 音频输出
		1 x 麦克风输入
	SDM300S	1 x GbE LAN
		2 x USB 3.0 Type A
		2 x SMA 天线预留孔
触摸屏	投射电容式多点触控
扬声器	2 x S.P.L. 96dB, 1.5W, 4 ohm
电源	84W ( 12V@7A )AC to DC 电源适配器
功耗	平均50W
尺寸	531mm (20.9”) (W) x 48.5 mm (1.9”) (D) x 317mm (12.5”) (H)
净重/毛重	2.2 kg (4.0 lb)/6.7kg (14 lb)
工作温度	0°C to +40°C (+32°F to +104°F)
相对湿度	20% - 80%, 无冷凝
认证	CE, FCC Class A, CB

CPU Card Selection: SDM300-S
CPU	Quad-core Intel® Pentium® N4200 1.1GHz processor or Dual-core Intel® Celeron® N3350 1.1GHz processor (depends on CPU Card)
System Memory	Onboard LPDDR4 2400 MHz 4GB (8GB optional)
BIOS	AMI UEFI BIOS
Storage	1 x eMMC 64GB onboard
Watchdog Timer	255 levels, 0 to 255 sec.
Onboard Graphics	Intel® HD Graphics 505/500 (depends on CPU card)

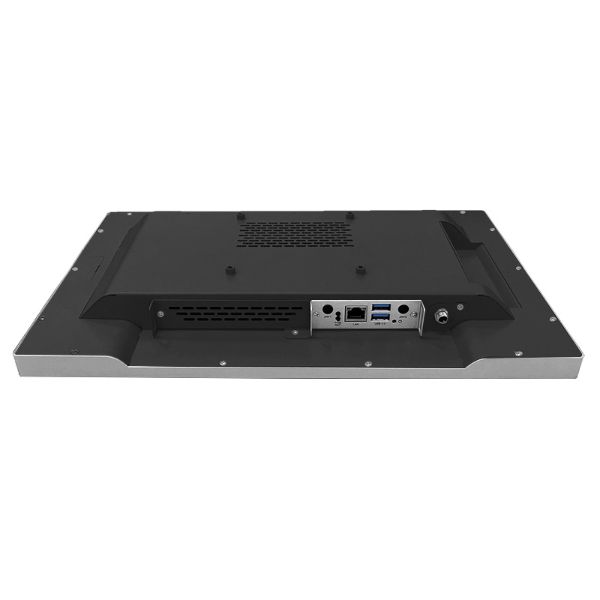

I/O Connector	Rear Side
	1 x GbE LAN
	2 x USB 3.0 Type A
	2 x SMA antenna reserved hole
Expansion Interface	1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)
CPU Card Selection: SDM500-L
CPU	Quad-core Intel® i5-8365UE 1.6GHz processor or Dual-core Intel® Celeron® 4305UE 2.0GHz processor (depends on CPU card)
System Memory	2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
BIOS	AMI UEFI BIOS
Storage	1 x M.2 Key B 2280 slot
Watchdog Timer	255 levels, 0 to 255 sec.
Onboard Graphics	Intel® UHD Graphics 620/610 (depends on CPU card)

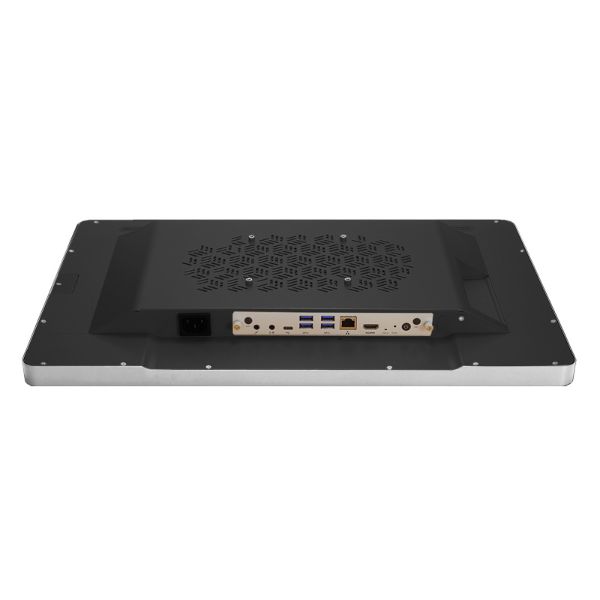

I/O Connector	Rear Side
	1 x Power button with LED 1 x GbE LAN
	2 x USB 3.0 Type A 1 x Audio output
	1 x Microphone input
Expansion Interface	1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)

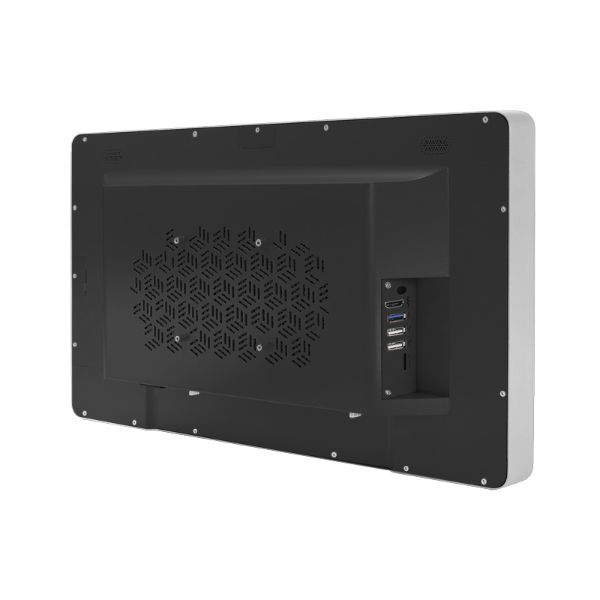

TOP-AI4305-P21 21.5寸
